Welding g meaning ~ 1G 2G 5G and 6G. The symbol on the near and far side represent the type of weld surface. Indeed lately has been searched by users around us, perhaps one of you. Individuals now are accustomed to using the net in gadgets to view image and video data for inspiration, and according to the name of the article I will talk about about Welding G Meaning Fillet The most used weld.

Types Of Welding Positions Welder Portal
Source Image @ welderportal.com

Welding g meaning ~ The arrow segment contains the following. This is in contrast with 1G flat surface welding 2G horizontal welding and 4G overhead ceiling welding. Your Welding g meaning picture are available. Welding g meaning are a topic that is being hunted for and liked by netizens today. You can Download or bookmark the Welding g meaning files here.

Welding g meaning | Types Of Welding Positions Welder Portal

Welding g meaning ~ That is why professional standard organizations such as ASME AWS ISO JWES make rules and classifications for welding positions. Welders must be certified in each position in order to perform those types of welds. Welding is usually used on metals and thermoplastics but can also be used on wood. In untrained hands welding can be a safety hazard.

The near side or far side of the weld is a convex surface. The molten weld pool is shielded by this slag which moves along the full cross-section of the joint as welding progresses. The welding symbol consists at least of a horizontal reference line has an arrow line pointing to the joint area and can have a tail with additional information for the welding process. 1G welding position is a position where the pipe is in a horizontal position and the pipe can be rotated against the horizontal axis or the X-axis.

Groove Second most used. One manufacturer could come out with a E71T-GS that uses shielding gas and another manufacturer could come out with one that does not use gas. 3-3 indicates the desired type of weld. Weld With Flat Face.

For fillet weld it is named as 1F 1 means the flat position and F means the fillet weld and for Groove weld it is named as 1G 1 means the Flat welding and G means the groove weld. Fillet Weld F It is a welding method for combining two parts of metal vertically or slightly at an angle. It requires full penetration for laying strong welds. Arrow and Other Side Fillet Weld Symbols.

Arrow and Other Side Groove Weld Symbols. Welding in a 3G position means moving the torch vertically up and down across a surface. The welding symbol describes the whole thing while the weld symbol can be part of the welding symbol. The completed welded joint may be.

Groove Weld G It is a weld made in the groove. A distinction is made between the terms weld symbol and welding symbol. It usually involves preparing the edge pieces to form one of the groove weld shapes like V bevel U J Flare V Flare bevel or no preparation at. The arrow is the part that specifies the location of welding at one end and connected to the reference line in the other.

The welder conducts welding from the top of the pipe. The welding symbol fig. - A welding process producing coalescence of metals with molten slag which melts the filler metal and the surfaces of the work to be welded. This is the easiest welding position.

The weld or the opposite surface is concave in nature. 3-2 is a method of representing the weld symbol on drawings. The dotted line indicates the weld side. Welding is a fabrication or sculptural process that joins materials usually metals or thermoplastics by causing coalescence.

The weld symbol fig. This element is used to pinpoint the exact location of the joint. The G means that it has no other defined properties. The table presents some of the most commonly used welding symbols.

Pipe welding positions can be divided into 4 groups. Actually the way I understand it the S after the G indicates that is for single pass welding. Basic welding positions are of 4 types which are Flat position Horizontal position Vertical position and overhead position. Welding is a permanent joint between two or more similar or dissilimar maraterials by heating them to a certain temperature with or without the application of pressure or by the pressure alone and with without adding filler materials.

Welding is a fabrication process whereby two or more parts are fused together by means of heat pressure or both forming a join as the parts cool. Weld With Concave Face. The weld symbol gives you information of the type of weld and is usually a part of the welding symbol. Weld With Convex Face.

If you are searching for Welding G Meaning you've reached the right location. We have 10 images about welding g meaning adding images, pictures, photos, wallpapers, and more. In such page, we additionally provide variety of graphics out there. Such as png, jpg, animated gifs, pic art, symbol, black and white, transparent, etc.

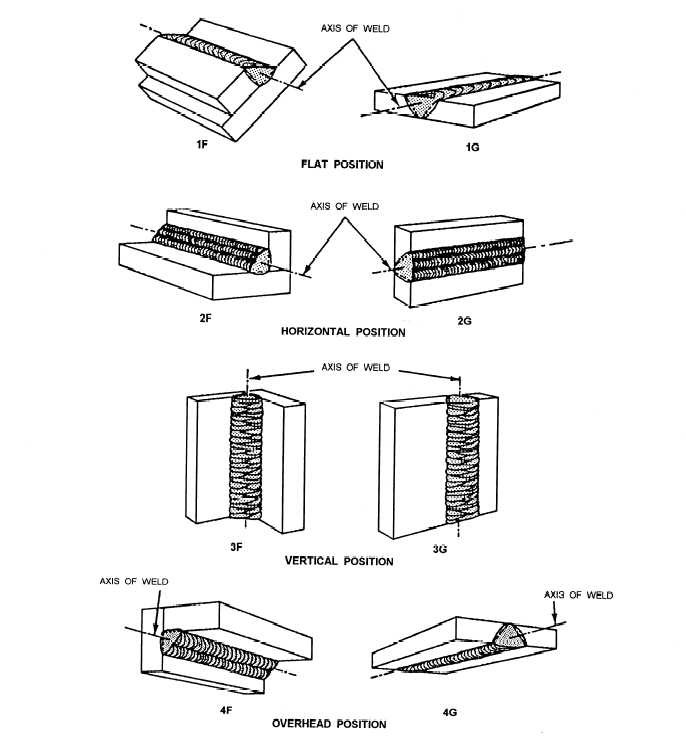

Welding Position
Source Image @ www.weldingengineer.com

Weld With Convex Face. The weld symbol gives you information of the type of weld and is usually a part of the welding symbol. Your Welding g meaning images are ready. Welding g meaning are a topic that has been hunted for and liked by netizens now. You can Get or bookmark the Welding g meaning files here.

Weld Symbol
Source Image @ app.aws.org

Weld With Concave Face. Welding is a fabrication process whereby two or more parts are fused together by means of heat pressure or both forming a join as the parts cool. Your Welding g meaning pictures are available. Welding g meaning are a topic that is being searched for and liked by netizens today. You can Get or bookmark the Welding g meaning files here.

Types Of Welding Positions And 1g 2g 3g 4g 5g 6g 6gr Joint Types
Source Image @ www.weldinginfo.org

Welding is a permanent joint between two or more similar or dissilimar maraterials by heating them to a certain temperature with or without the application of pressure or by the pressure alone and with without adding filler materials. Basic welding positions are of 4 types which are Flat position Horizontal position Vertical position and overhead position. Your Welding g meaning photos are available. Welding g meaning are a topic that is being hunted for and liked by netizens today. You can Get or bookmark the Welding g meaning files here.

Types Of Welding Positions Welder Portal
Source Image @ welderportal.com

Actually the way I understand it the S after the G indicates that is for single pass welding. Pipe welding positions can be divided into 4 groups. Your Welding g meaning picture are available. Welding g meaning are a topic that is being searched for and liked by netizens today. You can Find and Download or bookmark the Welding g meaning files here.

1g 2g 3g 4g 5g 6g 1f 2f 3f 4f Pipe And Plate Welding Position Engineering Blog
Source Image @ www.mechanicalengineerblog.com

The table presents some of the most commonly used welding symbols. The G means that it has no other defined properties. Your Welding g meaning photographs are ready in this website. Welding g meaning are a topic that is being hunted for and liked by netizens today. You can Download or bookmark the Welding g meaning files here.

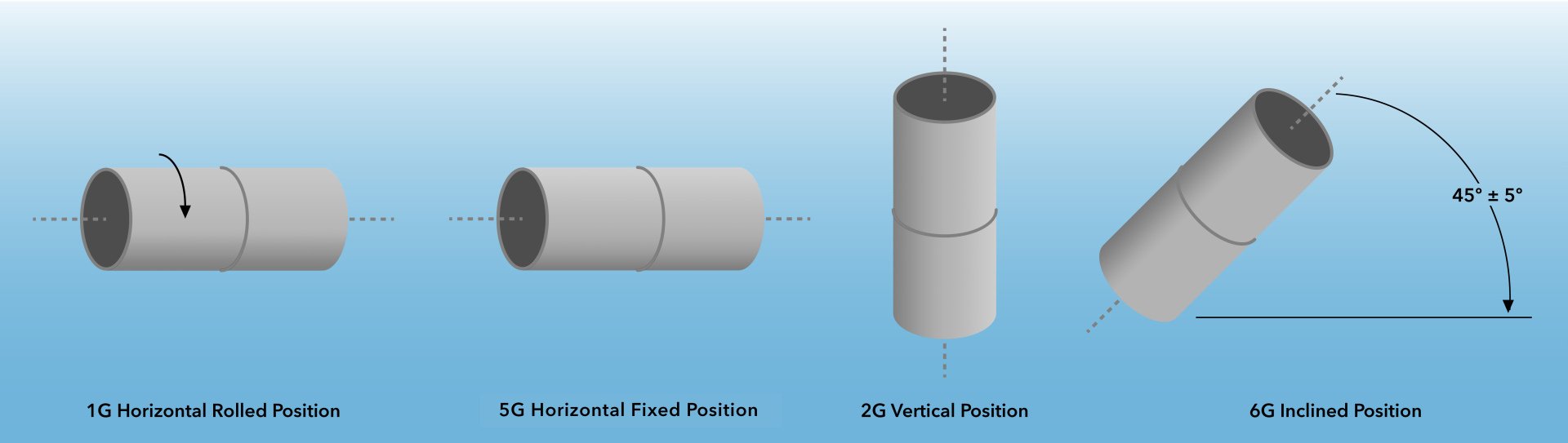

What Are The 1g 2g 5g And 6g Pipe Welding Positions
